OEM factory offers plum bing supplies with your own private label

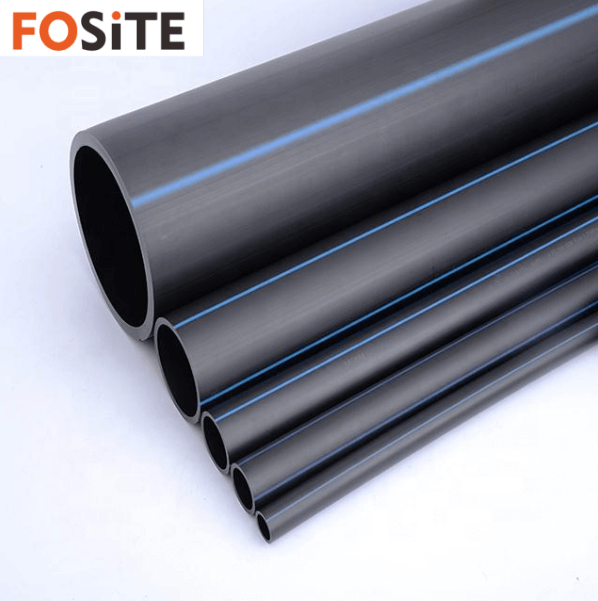

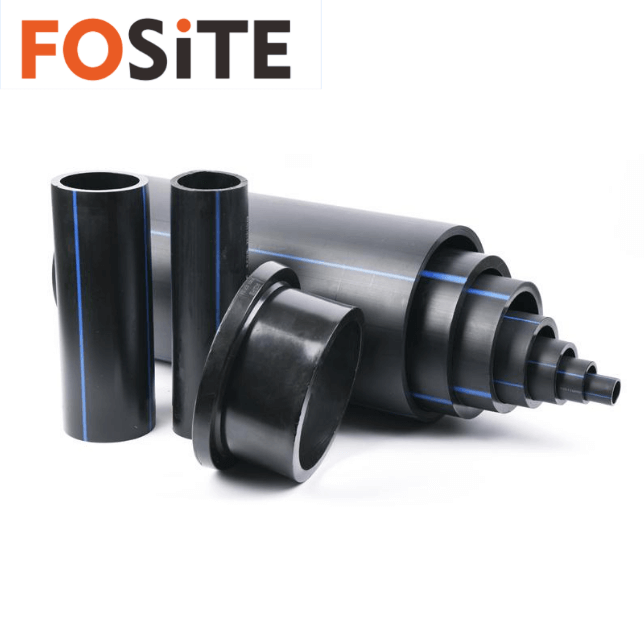

Product Description HDPE pipe is a perfect solution for municipal engineering system and urban water supply and drainage system. HDPE pipe adopts high-quality original PE100 or PE80 raw material with the size range of DN 20-2500mm, and the performance
Product Specification:HDPE pipe is a perfect solution for municipal engineering system and urban water supply and drainage system. HDPE pipe adopts high-quality original PE100 or PE80 raw material with the size range of DN 20-2500mm, and the performance conforms to ISO4427 standard and other national certification standards. HDPE pipes for water supply can be manufactured with different rated pressures mainly: SDR26/0.6MPa, SDR21/0.8MPa, SDR17/1.0MPa, SDR13.6/1.25MPa, SDR11/1.6MPa, etc.
Our HDPE pipe for water and sewer is manufactured for excellent performance and a long life expectancy.
1. High resistant to corrosion and weather, recent studies conclude it will last at least 50 years.
2. Its light weight and flexibility make it easy to install, eliminating the need for fittings required with directional changes, and make it highly suitable for use in earthquake prone areas.
3. Its high-strength walls give it the highest PE pressure rating, outstanding resistance to SCG and increased resistance to rapid crack propagation.
4. The increased working stress rating of high-performance PE resin material makes it a superior choice over steel or ductile iron pipe, especially for the large diameter pipe sizes.
|
PE100 |
0.4MPa |
0.5MPa |
0.6MPa |
0.8MPa |
1.0MPa |
1.25MPa |
1.6MPa |
2.0MPa |
2.5MPa |
|
Outside Diameter |
PN4 |
PN5 |
PN6 |
PN8 |
PN10 |
PN12.5 |
PN16 |
PN20 |
PN25 |
|
SDR41 |
SDR33 |
SDR26 |
SDR21 |
SDR17 |
SDR13.6 |
SDR11 |
SDR9 |
SDR7.4 |
|
|
Wall Thickness (en) |
|||||||||
|
20 |
- |
- |
- |
- |
- |
- |
2 |
2.3 |
3 |
|
25 |
- |
- |
- |
- |
- |
2 |
2.3 |
3 |
3.5 |
|
32 |
- |
- |
- |
- |
2 |
2.4 |
3 |
3.6 |
4.4 |
|
40 |
- |
- |
- |
2 |
2.4 |
3 |
3.7 |
4.5 |
5.5 |
|
50 |
- |
- |
2 |
2.4 |
3 |
3.7 |
4.6 |
5.6 |
6.9 |
|
63 |
- |
- |
2.5 |
3 |
3.8 |
4.7 |
5.8 |
7.1 |
8.6 |
|
75 |
- |
- |
2.9 |
3.6 |
4.5 |
5.6 |
6.8 |
8.4 |
10.3 |
|
90 |
- |
- |
3.5 |
4.3 |
5.4 |
6.7 |
8.2 |
10.1 |
12.3 |
|
110 |
- |
- |
4.2 |
5.3 |
6.6 |
8.1 |
10 |
12.3 |
15.1 |
|
125 |
- |
- |
4.8 |
6 |
7.4 |
9.2 |
11.4 |
14 |
17.1 |
|
140 |
- |
- |
5.4 |
6.7 |
8.3 |
10.3 |
12.7 |
15.7 |
19.2 |
|
160 |
- |
- |
6.2 |
7.7 |
9.5 |
11.8 |
14.6 |
17.9 |
21.9 |
|
180 |
- |
- |
6.9 |
8.6 |
10.7 |
13.3 |
16.4 |
20.1 |
24.6 |
|
200 |
- |
- |
7.7 |
9.6 |
11.9 |
14.7 |
18.2 |
22.4 |
27.4 |
|
225 |
- |
- |
8.6 |
10.8 |
13.4 |
16.6 |
20.5 |
25.2 |
30.8 |
|
250 |
- |
- |
9.6 |
11.9 |
14.8 |
18.4 |
22.7 |
27.9 |
34.2 |
|
280 |
- |
- |
10.7 |
13.4 |
16.6 |
20.6 |
25.4 |
31.3 |
38.3 |
|
315 |
7.7 |
9.7 |
12.1 |
15 |
18.7 |
23.2 |
28.6 |
35.2 |
43.1 |
|
355 |
8.7 |
10.9 |
13.6 |
16.9 |
21.1 |
26.1 |
32.2 |
39.7 |
48.5 |
|
400 |
9.8 |
12.3 |
15.3 |
19.1 |
23.7 |
29.4 |
36.3 |
44.7 |
54.7 |
|
450 |
11 |
13.8 |
17.2 |
21.5 |
26.7 |
33.1 |
40.9 |
50.3 |
61.5 |
|
500 |
12.3 |
15.3 |
19.1 |
23.9 |
29.7 |
36.8 |
45.4 |
55.8 |
- |
|
560 |
13.7 |
17.2 |
21.4 |
26.7 |
33.2 |
41.2 |
50.8 |
62.5 |
- |
|
630 |
15.4 |
19.3 |
24.1 |
30 |
37.4 |
46.3 |
57.2 |
70.3 |
- |
|
710 |
17.4 |
21.8 |
27.2 |
33.9 |
42.1 |
52.2 |
64.5 |
79.3 |
- |
|
800 |
19.6 |
24.5 |
30.6 |
38.1 |
47.4 |
58.8 |
72.6 |
89.3 |
- |
|
900 |
22 |
27.6 |
34.4 |
42.9 |
53.3 |
66.2 |
81.7 |
- |
- |
|
1000 |
24.5 |
30.6 |
38.2 |
47.7 |
59.3 |
72.5 |
90.2 |
- |
- |
|
1200 |
29.4 |
36.7 |
45.9 |
57.2 |
67.9 |
88.2 |
- |
- |
- |
|
1400 |
34.3 |
42.9 |
53.5 |
66.7 |
82.4 |
102.9 |
- |
- |
- |
|
1600 |
39.2 |
49 |
61.2 |
76.2 |
94.1 |
117.6 |
- |
- |
- |
1. Municipal engineering water supply and drainage.
2. Chemical industry water supply and drainage.
3. Mining area slurry transportation.
4. Farmland irrigation and animal husbandry.
5. Fish farming & breeding system.
6. Seawater desalination & water treatment.
DO :
Keep the pipes and fittings away from sharp objects, heat sources and toxic and corrosive materials.
Before installation, keep the protective packaging intact.
Prevent dust or other materials from entering the pipe.
DO NOT :
Throw pipe from delivery vehicles.
Place pipe and fittings incontact withlubricating oil, solvents or other aggressive materials.
Heat pipe with an open flame.
HEBEI Shentong Plastic Industry Co., Ltd. Was established in 2003, which is an enterprise concentrating manufacturing PLASITC pipes and fittings. The leading products are Fosite Brand PP-R PIPE AND FITTING, HDPE PIPE AND FITING, UPVC pipe and fittings, PE-RT, PEX pipes & fittings and plastic tubing welding equipment. It has advanced automatic machines.
We pursuit the quality is the first and the service is also important. Shentong has passed ISO9001, ISO4001. We have our own test lab for quality control. Our brand Forsite is famous in home and overseas market. SHENTONG promises: Reasonable price, fast delivery and satisfactory service. Hope to cooperate with more customers for mutual development and benefits, warmly welcome potential buyers to contact us.
Q1: Are you manufacture?
A: YES we are manufacturer.
Q2: Do you provide free sample?
A: YES, we supply you free sample within one day.
Q3: What is your deivery time?
A: Our delivery time is normally 7 to 15 days after deposit.
Q4: What is the payment terms?
A: We accept T/T, L/C at sight, PayPal & West union.
Q5: May I visit your factory?
A: Yes we welcome your visiting us someday at your convenience.
Q6: Can you accept our deisgn and products?
A: Yes we have professional engineer teams. We can deisgn and produce special products
Q7: where is your factory ?
A: Our factory is located in Shijiazhuang City, Hebei Province
